This post lists useful information extracted from part 3 of the Intel online training: Quartus Prime Integration & Reporting. It lists a tip on running different speed grades to see if you can meet timing with a less expensive device. It also lists that you may want to run timing after synthesis since the post synthesis results are only preliminary and that a synchronous I/O delay constraint depends on the clock that launches or latches the data.
The Video
Partially Expanded Transcript
0:00
welcome to the timing analyzer online
training my name is Steve this training
is available for desktop viewing as well
as in format compatible with portable
devices both available from the same
link included in your registration email
for it either version while watching the
training use the controls at the bottom
and side of the screen to navigate to
any point feel free to pause the
training at any time to experiment with
the software when you're done with the
training please use the link provided in
the registration email you're sent to
provide us feedback on the training and
ways in which it can be improved I'll
remind you about that later
0:41
in this
course you will learn how to perform
timing analysis in the Intel Quartus
prime software using timing analyzer you
will use synopsis design constraints or
SDC files
to constrain a design to meet timing
requirements and to compare results
you'll learn how to generate time
reports in timing analyzer and came
familiarity with its graphical user
interface
1:07
here is the agenda for this
course in the first part we looked at
basic timing analysis concepts and
terminology used in timing analyzer this
included a discussion of the terminology
used to select nodes from the SDC
netlist for targeting timing constraints
in the second part you are introduced to
the timing analyzer GUI and its use in
this part you'll learn how to
incorporate timing analyzer into the
Intel Quartus prime design flow and take
a look at timing analyzers reporting
features in more detail in the final
part available on the Intel training
website and leaked at the end of this
training you learn about SDC constraints
required to fully constrain a design as
well as a number of optional constraints
1:52
now that you know the basics of how to
use the tool how do you incorporate its
use into the Intel Quartus prime design
flow
2:01
here is a slightly altered version
of a typical Intel Quartus prime design
flow that incorporates the use of the
timing analyzer if you are using the
Intel Quartus prime standard or lite
you could use a postive assist netlist
to start creating timing constraints in
analyzing the design before performing a
full compilation to do this for
synthesizes the design timing analyzer
requires the design to be synthesized in
order to create a post map netlist
2:32
next
you'll use the timing analyzer flow just
presented to specify timing requirements
for the design as mentioned earlier
timing analyzer in the until quarters
Prime Pro Edition software does not
support analysis with a Poe synthesis
netlist
2:47
if you're using this edition of
the tool you'll start by adding your
diet SDC file or files to the Intel
Korres project settings which we'll
discuss in a moment

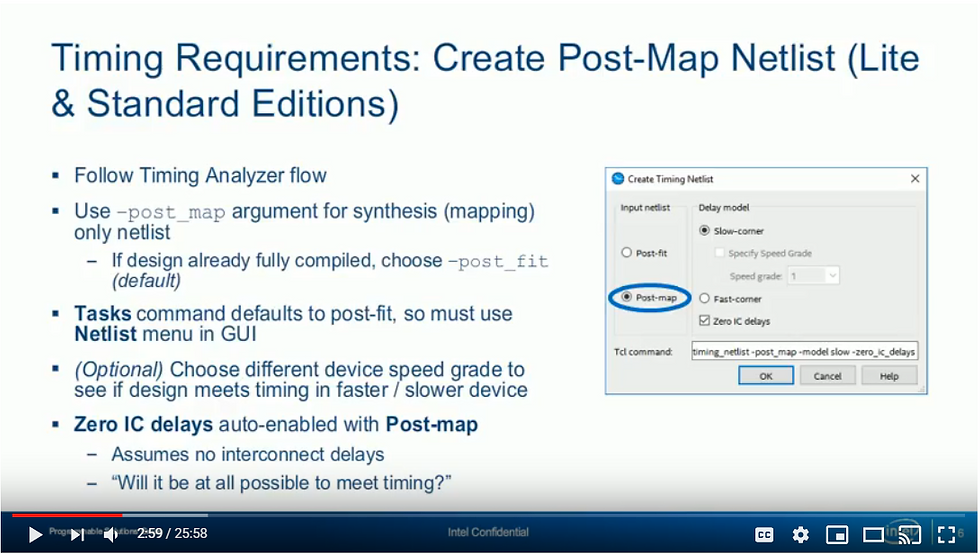

Timing Requirements: Create Post-Map Netlist (Lite & Standard Editions)
Slide Text
Timing Requirements: Create Post-Map Netlist (Lite & Standard Editions)
Follow Timing Analyzer flow
Use -post_map argument for synthesis (mapping) only netlist
If design already fully compiled, choose -post_fit (default)
Tasks command defaults to post-fit, so mustuse Netlist menu in GUI
(Options) Choose different device speed grade to see if design meets timing in faster / slower device
Zero IC delays auto-enabled with Post-map
Assume no interconnect delays
"Will it be at all possible to meet timing?"
Transcript
Follow the timing analyzer flow discussed earlier starting with the creation of the timing netlist. When generating the timing netlist use the -post_map argument to use the post synthesis netlist if the design has only been synthesized and not fully compiled. To do this either use the create_timing_netlist command with the -post_map argument in the console or use the GUI and select post map as the input netlist type is shown here. If you have already
performed a full compilation use the default post fit netlist type. With a slow corner delay model you can also choose a device speed grade to use for the analysis. By default if this option is enabled the speed grade of the currently target device is used. Change
the speed grade to see if a design that is not meeting timing could meet timing in a faster device or to see if a design already meeting time it could still be timing in a slower, potentially less expensive, device. With the post map netlist type selected the Zero IC (interconnect) Delays option is turned on automatically. Since there is no routing yet selected with the post map netlist, the timing analyzer should assume that there are no delays on any interconnect in the device to see if it will be at all possible to meet the timing requirements specified by the constraints.

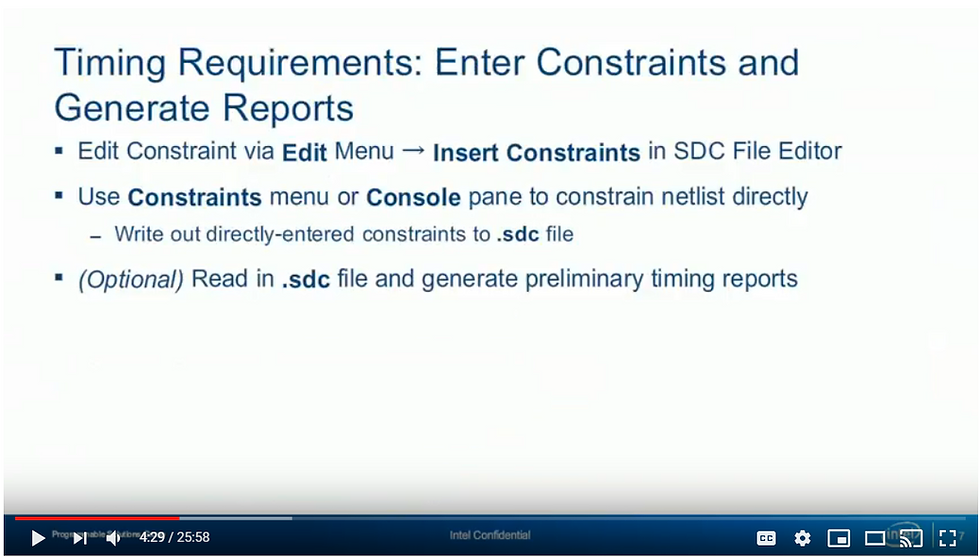

Timing Requirements: Enter Constraints and Generate Reports
Slide Text
Timing Requirements: Enter Constraints and Generate Reports
Edit Constraint via Edit Menur -> Insert Constraints in SDC Editor
Use Constraints menu or Console pane to constrain netlist directy
Write out directly-entered constraints to .sdc file
(Option) Read in .sdc file and generate preliminary timing reports
Transcript
Continuing the Timing Analyzer flow enter or create constraints in the usual manner either directly in the console or the SDC file editor, either manually or with the GUI constraint dialog boxes. Remember that if you are entering constraints in the console you'll need to write out a .sdc file for use by the Intel Quartus Prime fitter. At this point you could continue the timing analyzer flow presented earlier, reading in the .sdc file you've created and generate timer reports. However, note that reports generated at this stage of the design flow based off the postsynthesis netlist only provides preliminary timing numbers for the design. Paths that fail timing in these reports may be optimized and improved by the fitter during a full compilation allowing them to meet timing. As such only use post map reports to help with fully constraining the design and to get an idea of what the final timing numbers for the design could be.
5:33
next for all editions of the Intel
Korra's prime software you'll specify
timing analyzer settings and select the
dot SDC file or files for the Intel
cores prime software to use as a guide
during fitting
5:49
the Intel Quartus prime
software uses SDC constraints during the
placement and routing of a design the
constraints are used as a guide for
selecting device resources that will
meet all timer requirements for all
timing models when choosing the files to
use the fitter first looks for dot SDC
files that have been explicitly added to
the project settings if no SDC files
were added to the project the fitter
looks in the project directory for a dot
SDC file that has the same name as a
current revision of the project this is
the save behavior used by the timing
analyzer tool

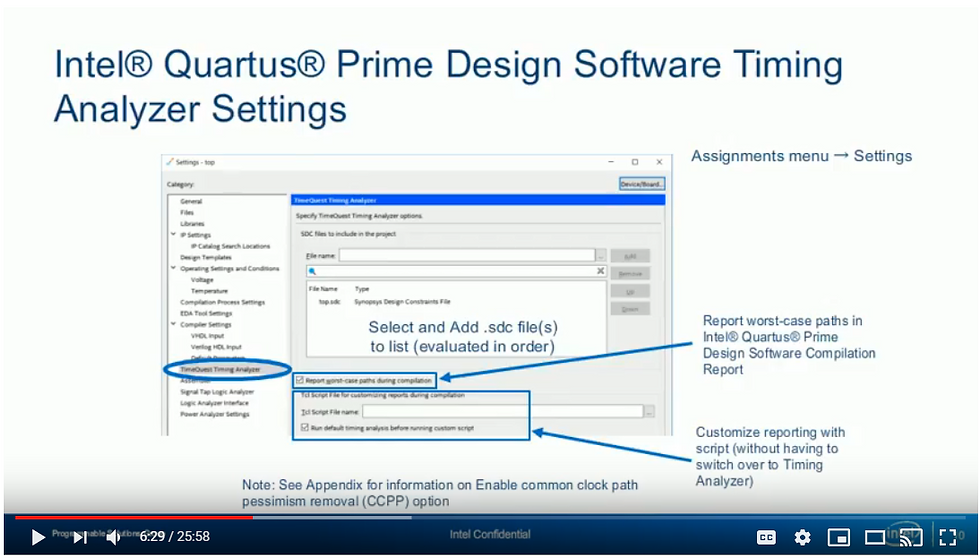

Intel Quartus Prime Design Software Timing Analyzer Settings
Slide Text
Intel Quartus Prime Design Software Timing Analyzer Settings
Assignments menu -> Settings
Report worst-case paths in Intel Quartus Prime Design Software Compilation Report
Customize reporting with script (without having to switch over to Timing Analyzer)
Note: See Appendix for informatiobn on Enable common clock path pessimism removal (CCPP) option
Transcript
The addition of .sdc files to the Intel Quartus prime project and other timing analyzer settings are found at the timing analyzer category of the settings dialog box. Browse for .sdc files and click the Add button to add them to the list. You can change the order in which the files are used by clicking the up or down buttons. The fitter views multiple dot SDC files as basically one long SDC file. Constraints that are dependent on other constraints must be listed below
the constraints they depend on either in the same file or across files when multiple files are added here. For example a synchronous I/O delay constraint depends on the clock that launches or latches the data. The clock constraint for this I/O constraint must either be listed earlier in a single SDC file or in a file higher up in the list when multiple files are used. It is also possible to have duplicate constraints. A duplicate constraint is a timing constraint lower down in a single .sdc file or lower in the file list that is in the same type of constraint and targets the same location in a timing netlist as another constraint. Timing Analyzer and the fitter will use the duplicated constraint overwriting the first constraint and displaying a warning. However in some cases it may be advantageous to target a particular location in the netlist with different values for a single type of constraint. As we'll see some constraints include options for doing this. Timing Analyzer settings also contain options for generating Timing Reports directly in the Intel Quartus prime software. With the options indicated you could enable the reporting of worst-case paths in the accomplish report and select a Tcl script to customize the Timer Reports generated during compilation. normally the Timer Reports generated and displayed in the compilation report are very basic require you to switch back to the timing analyzer interface to generate more detailed customized reports. with these options you could generate the same detailed reports in the Intel Quartus Prime compilation report without having to switch.
8:47
once the
timing analyzer settings are configured
in the Intel Quartus prime software
for my full compilation the fitter will
be guided by the SDC timing constraints
if you are using the Intel quarters
Prime Pro Edition either perform a full
compilation or compile up to the fitter
stage desired either planning placement
or routing after compiling use the
extensive reporting capabilities of the
timing analyzer tool to verify whether
you met your timing requirements during
compilation timing summary reports based
on the post fitna lists are generated
and appear automatically in the Intel
Quartus prime compilation report for
more detailed timing verification follow
the steps for using the timing analyzer
reporting features mentioned earlier
when creating the timing netlist use the
post FET netlist option if using the
Intel Quartus prime Lite or standard
edition or the desired fitter snapshot
if using the Pro Edition when creating
the netlist you can choose to turn on
the 0ic delays option this is normally
off for a post fit netlist but you can
turn it on to see if there's any chance
of meeting timing with the current
timing constraints and project settings
if timing fails at this stage even with
0ic delays enabled you'll probably have
to adjust your timing constraints or
optimize the project in some way in
order to meet timing once the netlist is
generated you can access the most
commonly used timely reports from the
tasks pane to easily recreate the same
reports each time you use the tool place
reporting commands in a tickle script
file and run the script from the timing
analyzer script menu using a script file
is also very useful if you are creating
your own customized timer reports it
saves time and having to create
complicated report commands remember
that the reports you generate after the
fitter has run should be used to verify
whether the fitter was able to meet your
timely requirements if any part of the
design is failing timing at this point
the design or timing constraints must be
adjusted to fix the problem and the
design recompile to implement the fix
before discussing SDC constraints in
detail let's take a closer look at some
of the reporting options available in
timing analyzer before looking at
reports in timing analyzer let's look at
reports that appear in the Intel
quarters compilation report here you can
see the basic timer reports generated by
the tool during compilation notice the
multiple timing model report folders
within the timing analyzer report folder
Multi corner analysis performs timing
analysis for all timing models supported
by the targeted device each timing
models folder includes summary reports
with the worst case positive or negative
slack displayed for each clock domain in
the design as mentioned you can also
have the tool generate additional more
advanced reports using a tickle script
these additional reports appear in a
separate folder in the complex Report
named time quest timing analyzer GUI to
create more detailed reports and have
more control over what reports are
generated use the reporting features of
the timing analyzer tool you can quickly
create simple reports from the task pane
or reports menu or create more
complicated reports with reporting
dialog boxes and command line reporting
features again store your reporting
commands in a tickle script to easily
recreate reports when making changes to
timing constraints all generated reports
can be output to three different
destinations by default all generated
reports appear in the view pane and are
listed in the report pane you could give
a custom name to report in the report
pane or the view pane with the dash
panel name option the dash multi corner
option works with the dash panel name
option to create placeholder reports for
additional timing models this makes it
easy to create custom reports for all
supporting timing models using the
options discussed earlier reports can
also be displayed in the console with
the dash standard out option another
option is to store reports as external
files you can create plain ASCII tech
files or HTML files for display on the
web use the appropriate options in the
console or in the reporting dialog boxes
to select where and how reports should
appear here is what a report appearing
in the view pane looks like with the -
multi corner option enabled a folder is
created to store the individual reports
for each supporting timing model without
the - multi corner option only a single
report would appear in the report pane
and the report in the view pane would
include the custom report name reports
output to the console look like this
expand individual paths in the report to
get more detail finally reports output
to files look like this they contain all
the textual information that would be
found in a report in the GUI create new
files in either plain text or HTML
formats or pen new reports to existing
ones reports are organized by report
type in the tasks pane and the reports
menu one type of report you can generate
our diagnostic reports diagnostic
reports don't contain specific timing
information but they do contain
information that is helpful for
constraining a design we've already
discussed report underscore SDC command
that is used to see what constraints
have been applied to the netlist report
underscore clocks provides a list of all
constrained clocks in the design any
signal that is located on a device clock
pin or the clock input of a register is
considered a clock signal that must be
constrained report ignored constraints
list constraints that the timing
analyzer is intentionally ignoring
usually because of typos incorrect
syntax or incorrect constraint arguments
finally the report unconstrained paths
command is useful for seeing which paths
in your design are considered to be
unconstrained by the tool you want to
get to the unconstrained path count down
to 0 in this report to make sure that
all paths in the design are constrained
summary reports are the most basic type
of timer reports and the ones you will
use most often separate reports are
deeded for the setup and hold analyses
use recovery and removal options for a
secretive signal analysis each row in a
summary report represents a clock domain
in the design the worst case positive or
negative slack in the clock domain is
shown if the slack is negative it will
appear in red and the endpoint tina's
column will indicate the sum total of
all the negative slack within the clock
domain this gives you an idea of how
badly the paths in a particular clock
domain are feeling timing you can also
right-click a clock domain in the
summary report and select report timing
to get a more detailed custer report on
the paths within that clock domain the
report timing option lets you create
custom detailed reports about a clock
domain selected in a summary report or
about any path or paths in the design
access the dialog box from the task pane
the reports menu or by right-clicking on
items in already generated reports as
mentioned earlier you can select where
the report is sent either a view pane in
the timing analyzer interface the
console pane as ASCII text or out to a
text or HTML file you can also select
the detail level of report by default
the detail level is set to full path
which provides detailed information for
all elements that make up the clock and
data paths associated with the selected
clock domain and targets another detail
level option is summary use the summary
detail level to see summary reports
similar to the clock domain summary
reports shown earlier with each row in
the report representing a separate path
one final important option is the number
of paths to include in the generate
report with this option set to anything
greater than 1 the paths with the most
negative or positive slack are listed at
the top of the report
analyzing multiple paths in a single
report is very helpful in spotting
timing failure trends for example if all
or many of the paths in a particular bus
are failing timing and adjustment to the
design of the source or destination
registers or the tiny constraints on
just those paths could fix the problem
without having to analyze each and every
path in the bus a single constraint
using a wild-card would handle the
entire bus the equivalent console or
script command and options are shown
here as you can see there are many
options available but they can't be
divided into three general categories
the first set of options are used to
choose exactly which paths to include in
the custom report you can choose
specific elements in the SDC netlist
discussed earlier or choose paths based
on what clock domains are used for the
launch or latch edges the second set of
options are used to choose basic options
for the report itself such as the detail
level and the report destination the
final set of options choose exactly what
information should be included in the
generated report this includes the
number of paths options just discussed
as well as an option for slack limit
with this option for example if you only
want to focus on paths that were failing
timing you could set the slack limit to
0 nanoseconds that way no paths with the
calculated slack greater than 0 would
appear in the report use the GUI and the
console command options to create
reporting commands that can be placed in
a script for repeatability some of the
more often news reporting timing
arguments are shown here each has an
equivalent option the GUI select the
type of report either set up or hold for
synchronous paths or recovery or removal
for asynchronous paths each type of
report is mutually exclusive so you'll
need to generate more than one report to
see the complete analysis results for
all paths select the detail level with
the - detail argument and the number of
paths to analyze with the - and
argument here is what a detailed slack
path report looks like
notice that the reporting command
generates a report for 10 paths in the
design with a detailed level set to full
path the summary of paths at the top of
the report lists the ten worst set up
timing paths launched by the clock times
one clock domain and latched by the
clock times two clock domain the columns
in the summary port indicate the
calculated slack on the paths the source
and destination nodes the launch and
latch clock domains the timer
relationship between the two clock
domains the clock skew between the
clocks arriving at the source and
destination registers and the total data
delay along the data arrival path after
selecting a path from the list at the
top the details for that path are shown
in tabs in the bottom two sections of
the report the path summary tab selected
on the Left gives you a basic summary of
the selected path its source and
destination nodes as well as the
calculated values for data arrival time
data required time and slack the data
path tab on the right provides detailed
information about the data arrival and
data required paths discussed earlier
this includes the logic cells and
interconnect the signal passes through
and the accumulated delay through each
of these elements this is very useful
for seeing if a certain part of the path
is adding an unusually large amount of
delay into the signal the statistics tab
provides detailed statistics about the
selected path such as the percentage of
time spent in interconnect
versus the time spent going through
cells the waveform tab provides a
graphical representation of timing
waveforms for the data arrival and data
required paths similar to the waveforms
presented earlier delay elements listed
on the data path tab can be easily
correlated to the waveforms on this tab
such as clock and data path delays use
the waveform tab to see exactly how and
where
the timing analyzer selected values for
calculating slack cursors in the
waveform tab snapped two timing events
in the waveforms make it easy to see the
amount of time that passes between two
timing events finally the extra fitter
information tab provides information
about any physical placement constraints
on the logic cells that make up a
selected data path these constraints
such as design partitions and logic lock
region assignments may force the fitter
to place design elements in particular
locations on the device which could be
the cause of a timing failure near the
bottom of the tab you can see a
miniature version of the Intel cores
prime chip planner giving you a
bird's-eye view of the routing of the
paths in the chip this helps to
visualize the placement of the path and
how the list of physical constraints
affect the paths placement in addition
to detailed timer reports you can
generate a special report that can help
you get started with closing timing on
your design the timing closure
recommendations report will analyze your
entire design and make suggestions to
help solve common timing closure
problems some common recommendations you
may seem include duplicating the source
registers of - out nodes moving or
removing restrictive logic placement
options or other fixed location
assignments and reducing the number of
logic levels on certain critical paths
if your design is failing timing run
this report as a first step till find
ways to fix the design this concludes
part three of the training if you miss
parts one or two or you'd like to
continue on to part four you can
register for free at the link shown here
to learn about additional resources
available to help you with using timing
analyzer continue to the next slide for
more information about timing analysis
and the timing analyzer
be sure to read the timing analysis or
review and timing analyzer chapters in
volume 3 of the Intel Quartus prime
handbook linked here to learn techniques
for closing timing in a design using SDC
constraint
and timing analyzer see the timing
closure and optimization chapter in
volume 2 if you'd like hands-on
experience with timing analyzer or you
want to learn advanced techniques for
closing timing into design enroll in any
of the timing analyzer related
instructor-led courses listed here there
are many free online training courses
just like this one that can help you
learn more about timing analysis and
timing closure use the links here to
register for course or to find more
training at the Intel training website
intel provides multiple avenues in which
to learn about Intel FPGA products in
addition to free online training such as
this there is the Intel FPGA YouTube
channel with its quick videos and demos
there are virtual classes where an
instructor teaches a class live over the
web and there are in-person
instructor-led classes where an intel
FPGA expert teaches a topic in an office
local to you please see the links on
this slide for more information
one last thing when you register for
this training the link was sent to you
in your confirmation email that links to
a short online survey please complete
the survey to let us know what you think
of this training and if you could think
of ways that it can be improved
References
